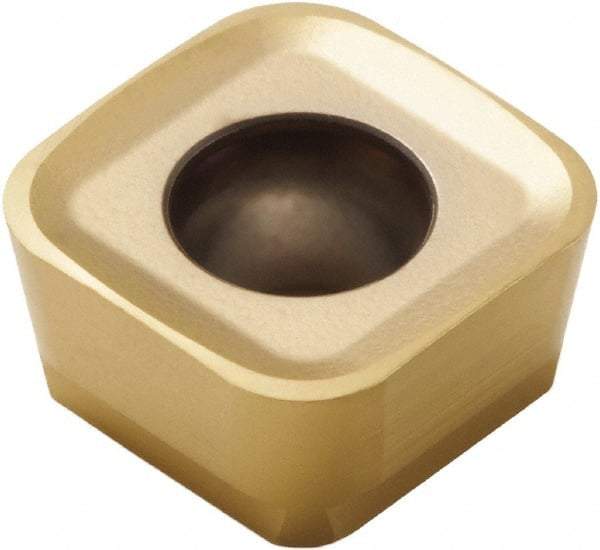

Seco - SCET120612 MD15 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 1/4" Thick, 1/2" Inscribed Circle, 0.047" Corner Radius
Item #: 83257402
Brand: Seco
Model #: 44668
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCET |
| Insert Size | 120612 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Relief Angle | 7.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | MD15 |
| ISO Number | SCET120612T-MD15 |
