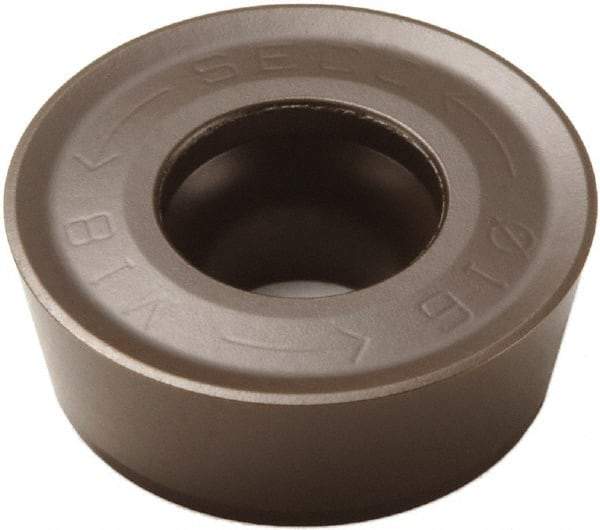

Seco - RPHT1605M0 M12 Grade MS2500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.219" Thick, 0.63" Inscribed Circle
Item #: 83257055
Brand: Seco
Model #: 43178
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPHT |
| Insert Size | 1605M0 |
| Material | Carbide |
| Material Grade | C6 |
| Manufacturer's Grade | MS2500 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.6300 |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Decimal Inch) | 0.2190 |
| Relief Angle | 11.000 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | M12 |
| ISO Number | RPHT1605M0T-M12 |
