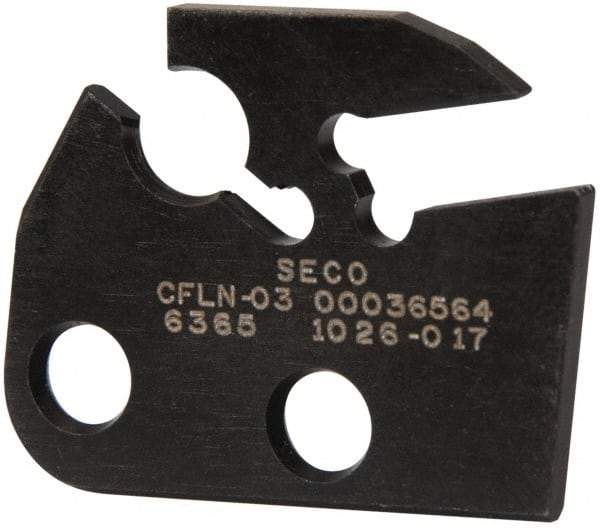

Seco - 3/32" Blade Width, 6.681" OAL, Single End Indexable Cut-Off Blade - 0.511" Max Depth of Cut, CFLN Blade, MDT Series
Item #: 83204156
Brand: Seco
Model #: 36564
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Blade Width (Decimal Inch) | 0.0940 |
| Blade Overall Length (Decimal Inch) | 6.6810 |
| Blade Style | CFLN |
| Insert Style | LC.. |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Series | MDT |
| Insert Seat Size | 3 |
| Tool Block/Toolholder Style | SFN |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (Decimal Inch) | 0.5110 |
| Insert Corner Radius (Decimal Inch) | 0.0080-0.0160 |
| Complete Insert Compatibility | LC.. 1603.. |
| Complete Tool Block/Toolholder Style Compatibility | SFN100N |
| Manufacturers Catalog Number | CFLN-03 |
| Overall Width (Decimal Inch) | 0.9760 |
