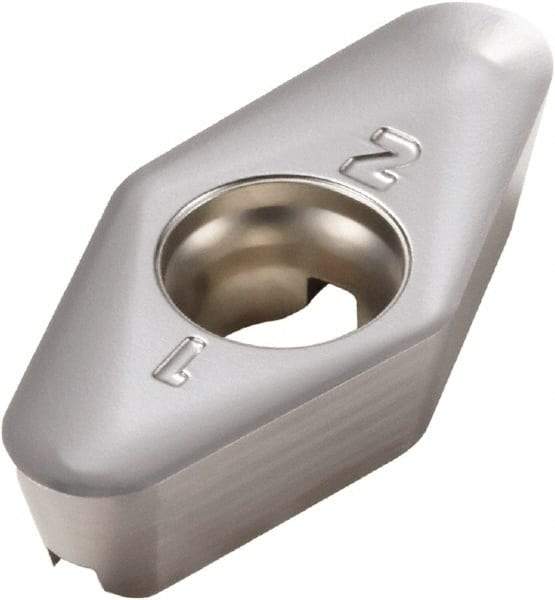

Seco - VPGX220640 E10 Grade H25 Carbide Milling Insert - Uncoated, 1/4" Thick, 0.551" Inscribed Circle, 0.157" Corner Radius
Item #: 82932096
Brand: Seco
Model #: 35403
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VPGX |
| Insert Size | 220640 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | H25 |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.5510 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Relief Angle | 11.000 |
| Rake Angle | 25 |
| Included Angle | 35 |
| Shape | Diamond |
| Insert Hand | Right Hand |
| Chipbreaker | E10 |
| ISO Number | VPGX220640ER-E10 |
