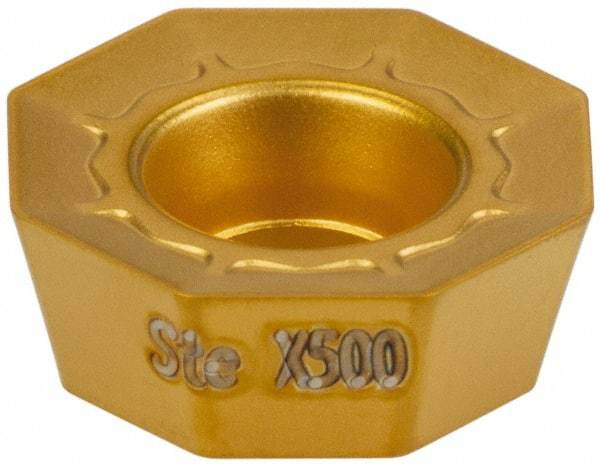

Kennametal - ODMT040408 41 Grade X500 Carbide Milling Insert - TiN/TiC/TiN Finish, 0.187" Thick, 1/2" Inscribed Circle, 0.031" Corner Radius
Item #: 82813486
Brand: Kennametal
Model #: 5656811
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODMT |
| Insert Size | 040408 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C6/C7 |
| Manufacturer's Grade | X500 |
| Coating | TiN/TiC/TiN |
| Length (Decimal Inch) | 0.1570 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | 41 |
