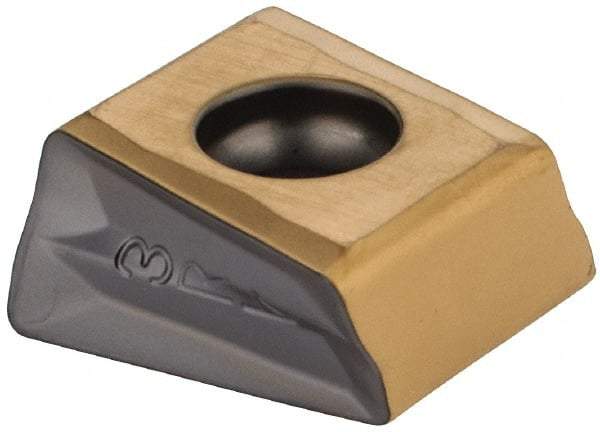

Iscar - T490 LNMT1306 Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.5118" Thick, 0.8mm Corner Radius
Item #: 82753377
Brand: Iscar
Model #: 5606324
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMT |
| Insert Size | 1306 |
| Material | Carbide |
| Material Grade | P15-P30 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.2618 |
| Length (Decimal Inch) | 0.4921 |
| Thickness (Decimal Inch) | 0.5118 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| ISO Number | T490 LNMT 1306PNTR |
