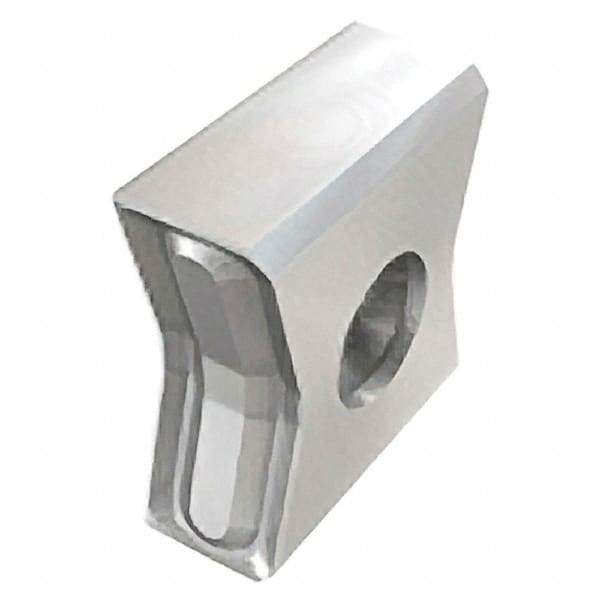

Iscar - LNAT1506 W Grade IC4100 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.5453" Thick
Item #: 82744277
Brand: Iscar
Model #: 5605389
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNAT |
| Insert Size | 1506 |
| Material | Carbide |
| Material Grade | C2/C3/C4/C6/C7 |
| Manufacturer's Grade | IC4100 |
| Coating | TiCN/Al2O3/TiN |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.5976 |
| Thickness (Decimal Inch) | 0.5453 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | W |
| ISO Number | LNAT 1506PN-W |
