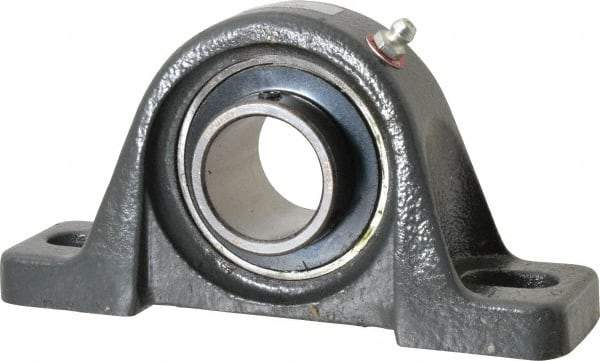

Browning - 1-1/4" ID, 6-3/16" OAL x 3-5/32" OAH Pillow Block - 2,567 Lb Static Cap, 4,381 Lb Dyn Cap, 4-5/8" Btw Mnt Hole Ctrs, 1-9/16" Base-to-Ctr Ht, Cast Iron
Item #: 82733098
Brand: Browning
Model #: VPLS-220S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Pillow Block |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Inch) | 1-3/4 |
| Overall Length (Inch) | 6-3/16 |
| Overall Height (Inch) | 3-5/32 |
| Static Load Capacity (Pounds) | 2567.00 |
| Dynamic Load Capacity (Pounds) | 4381 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 4.6250 |
| Distance Between Mounting Hole Centers (Inch) | 4-5/8 |
| Material | Cast Iron |
| Distance Between Base And Center (Decimal Inch) | 1.5630 |
| Distance Between Base And Center (Inch) | 1-9/16 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 1/2 |
