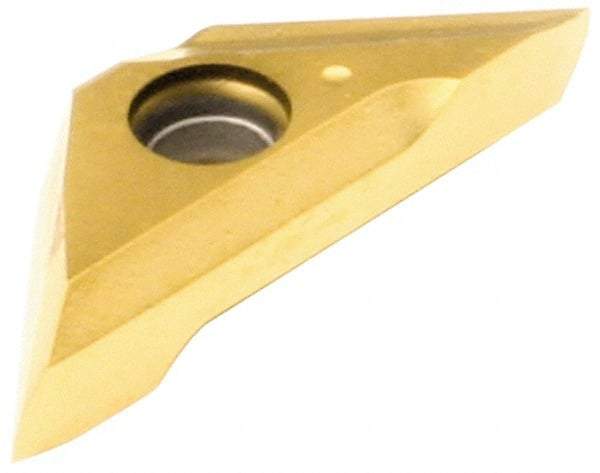

Kennametal - FAS 100302, 47° KC7215 Grade Drill Chamfer Insert - GD Chipbreaker, TiAlN Coated, Series KSEM
Item #: 82698622
Brand: Kennametal
Model #: 1994080
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Material | Carbide |
| Insert Style | FAS |
| Insert Size | 100302 |
| Chamfer Angle | 47 |
| Manufacturer's Grade | KC7215 |
| Chipbreaker | GD |
| Width (Decimal Inch) | 0.2500 |
| Width (mm) | 6.35 |
| Thickness (mm) | 3.48 |
| Thickness (Decimal Inch) | 0.1370 |
| Hole Diameter (mm) | 2.85 |
| Hole Diameter (Decimal Inch) | 0.1122 |
| Material Grade | C3/C4/C7 |
| Coating | TiAlN |
| Coating Process | PVD |
