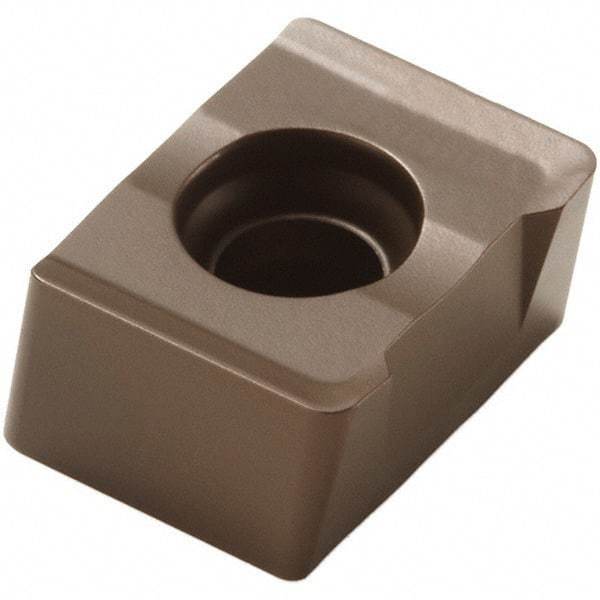

Seco - LNKT060508 M06 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 0.197" Thick, 0.031" Corner Radius
Item #: 82675513
Brand: Seco
Model #: 00101
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNKT |
| Insert Size | 060508 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.3070 |
| Length (Decimal Inch) | 0.3940 |
| Thickness (Decimal Inch) | 0.1970 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | M06 |
| ISO Number | LNKT060508PPTN-M06 |
