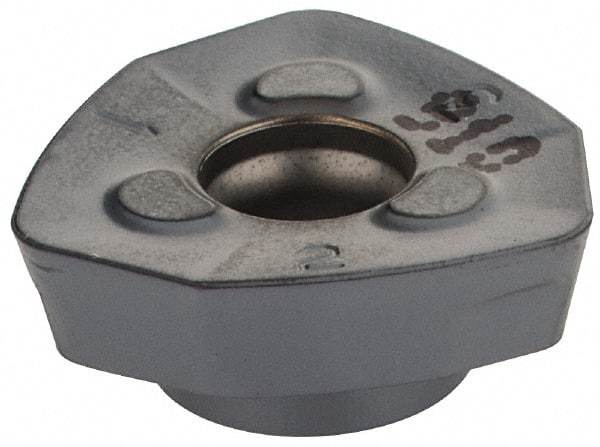

Iscar - FF WOMT09T320 Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.1555" Thick, 14.5mm Inscribed Circle, 2mm Corner Radius
Item #: 82674151
Brand: Iscar
Model #: 5603326
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FF WOMT |
| Insert Size | 09T320 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Length (Decimal Inch) | 0.4173 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (Decimal Inch) | 0.1555 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Rake Angle | 6 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| ISO Number | FF WOMT 09T320T |
