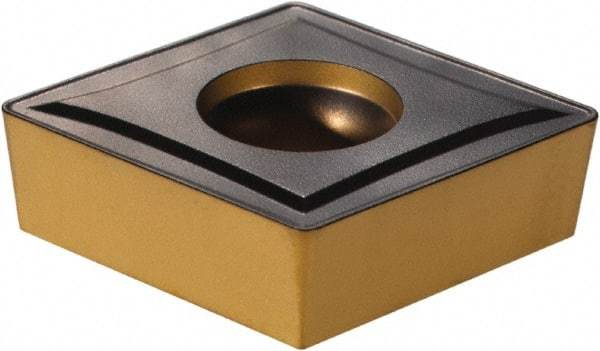

Big Kaiser - CC 163115 TN11 Grade Carbide Boring Insert - TiCN, Al2O3 & TiN Coated, Diamond, 80° Incl Angle, 7° Relief Angle, 5/8" Inscr Circle, 7/32" Thick, 1/32" Cnr Rad
Item #: 82340712
Brand: Big Kaiser
Model #: 11.654.996
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CC |
| Insert Size | 163115 |
| Material Grade | C7 |
| Manufacturer's Grade | TN11 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2190 |
| Thickness (Inch) | 7/32 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating | TiCN/Al2O3/TiN |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
