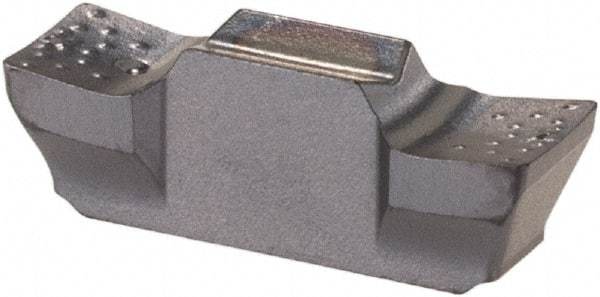

Iscar - 318020GEPI Grade IC908, 3.18mm Cutting Width Carbide Grooving Insert - 8.99mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, TiN/TiAlN Finish
Item #: 82327248
Brand: Iscar
Model #: 6403374
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEPI |
| Insert Size | 318020 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 8.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 2.90 |
| Cutting Height (Decimal Inch) | 0.1140 |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Grooving; Turning |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 10.01 |
| Overall Length (Decimal Inch) | 0.3940 |
| Series | Cut Grip |
| ISO Number | GEPI 3.18-0.20 |
| Manufacturers Catalog Number | GEPI 3.18-0.20 |
