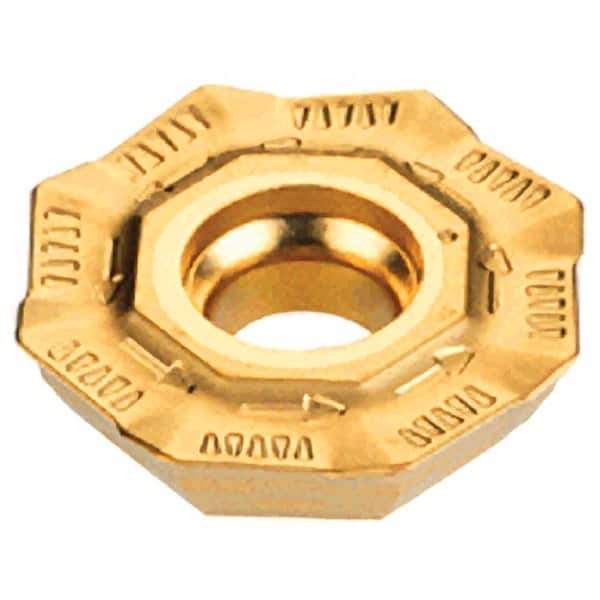

Iscar - OFMT07T3 Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.1787" Thick, 0.7114" Inscribed Circle, 1mm Corner Radius
Item #: 82016049
Brand: Iscar
Model #: 5602067
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFMT |
| Insert Size | 07T3 |
| Material | Carbide |
| Material Grade | C2/C3/C6 |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Inscribed Circle (Decimal Inch) | 0.7114 |
| Thickness (Decimal Inch) | 0.1787 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| ISO Number | OFMT 07T3-AETN |
