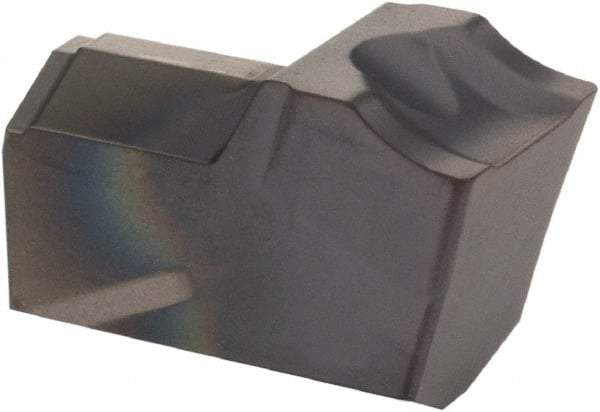

Kennametal - A2080 CR KC5025 Grade, 0.315" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0157" Cnr Rad, TiAlN Coated
Item #: 81993768
Brand: Kennametal
Model #: 1793827
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A2 |
| Insert Size | 080 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Coating | TiAlN |
| Series | A2 |
| Relief Angle | 2 |
| Chipbreaker | CR |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Cutting Height (mm) | 9.28 |
| Cutting Height (Decimal Inch) | 0.3654 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 8 |
