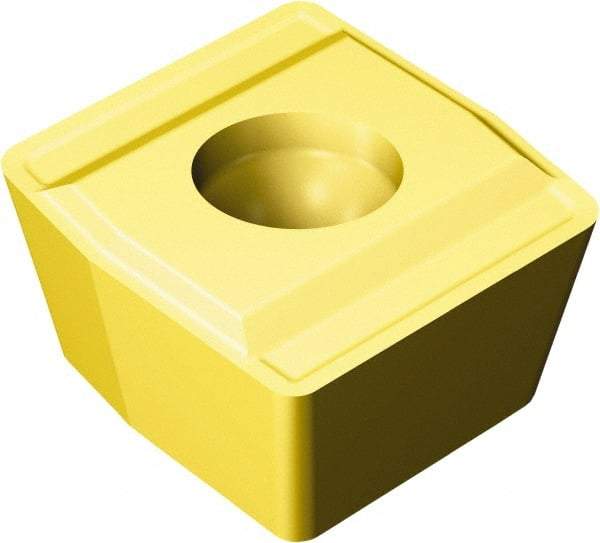

Sandvik Coromant - 8009 G Grade 1025 Carbide Indexable Drill Insert - TiAlN/TiN Finish, Rectangle, 9mm Inscribed Circle
Item #: 81954802
Brand: Sandvik Coromant
Model #: 5765140
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | 800 |
| Insert Size | 9 |
| Material | Carbide |
| Manufacturer's Grade | 1025 |
| Inscribed Circle (mm) | 9.00 |
| Inscribed Circle (Decimal Inch) | 0.3543 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Rectangle |
| Width (Decimal Inch) | 0.3543 |
| Width (mm) | 9.00 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 11 |
| Included Angle | 11 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | G |
