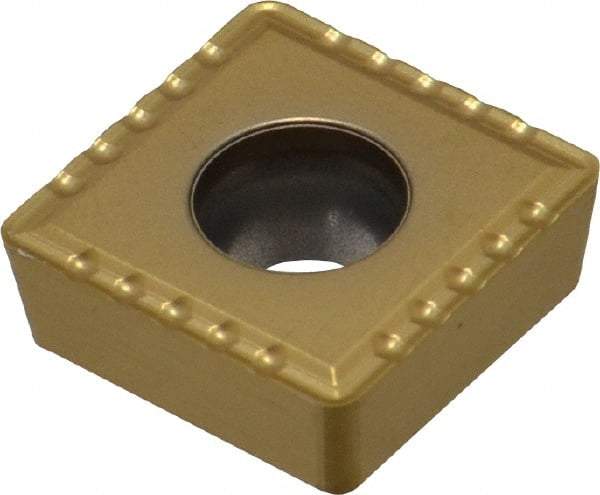

Seco - SCGX150512 P1 Grade T250D Carbide Indexable Drill Insert - TiAlN Finish, Square, 5/8" Inscribed Circle
Item #: 81929523
Brand: Seco
Model #: 59716
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 150512 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | T250D |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Shape | Square |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | P1 |
