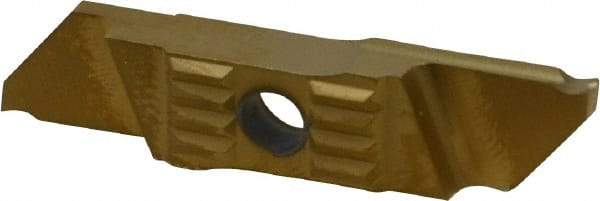

NTK - CTPW FRN ZM3 Grade, 0.098" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.002" Cnr Rad, TiN Coated
Item #: 81744880
Brand: NTK
Model #: 5438056
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CTPW |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0980 |
| Material Grade | Micrograin |
| Manufacturer's Grade | ZM3 |
| Coating | TiN |
| Chipbreaker | FRN |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Overall Length (mm) | 45.00 |
| Overall Length (Decimal Inch) | 1.7717 |
| Cutting Height (mm) | 9.70 |
| Cutting Height (Decimal Inch) | 0.3819 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Overall Width (Decimal Inch) | 0.2560 |
