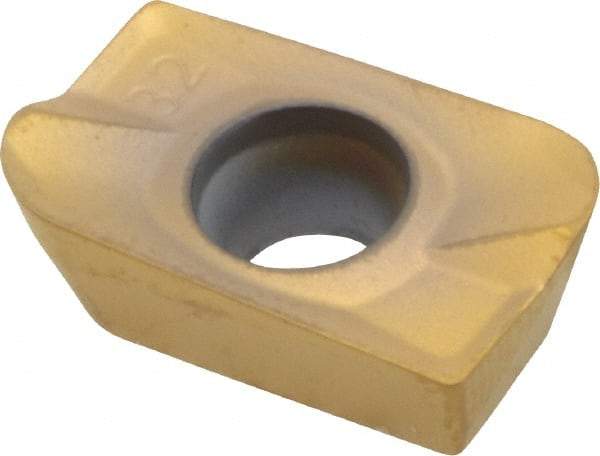

Hertel - APPT160432 GD Grade HP225M Carbide Milling Insert - TiN/TiCN/TiN Finish, 0.207" Thick, 1/8" Corner Radius
Item #: 81545337
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APPT |
| Insert Size | 160432 |
| Material | Carbide |
| Manufacturer's Grade | HP225M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.3710 |
| Length (Decimal Inch) | 0.6640 |
| Thickness (Decimal Inch) | 0.2070 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Coating Process | PVD |
| Included Angle | 85 |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| ISO Number | APPT160432PDER-MM |
