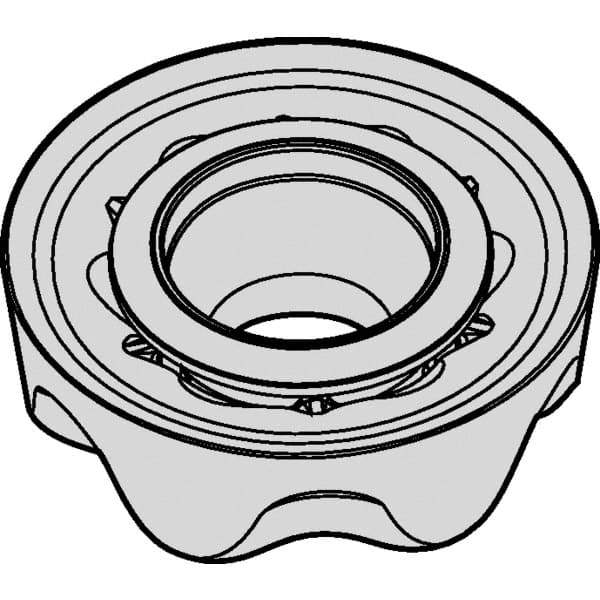

Kennametal - RCGX64 Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 1/4" Thick, 3/4" Inscribed Circle
Item #: 81506552
Brand: Kennametal
Model #: 4122719
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 64 |
| Material | Carbide |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2560 |
| Relief Angle | 7.000 |
| Rake Angle | 25 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Cutting Edge Style | Honed T-Land |
| ISO Number | RCGX190600SGF |
