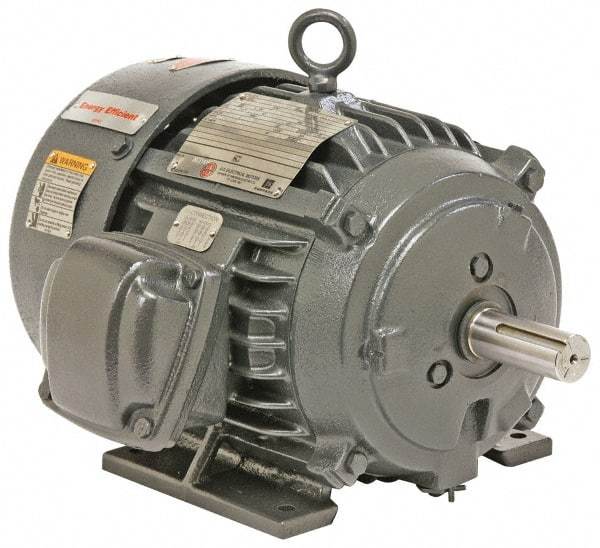

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,175 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 286 Frame, Rigid Mount, 1 Speed, Ball Bearings, 19.9 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,175 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 286 Frame, Rigid Mount, 1 Speed, Ball Bearings, 19.9 Full Load Amps, F Class Insulation, Reversible


Item #: 81425050
Brand: US Motors
Model #: HC20E3G
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure TEFC
Horsepower 20
Thermal Protection Rating None
Name Plate RPMs 1175
Voltage 575
Frequency Hz 60
Frame Size 286
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 19.9
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 27.0000
Full Load Efficiency Rating 90.2
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$4,734.68
