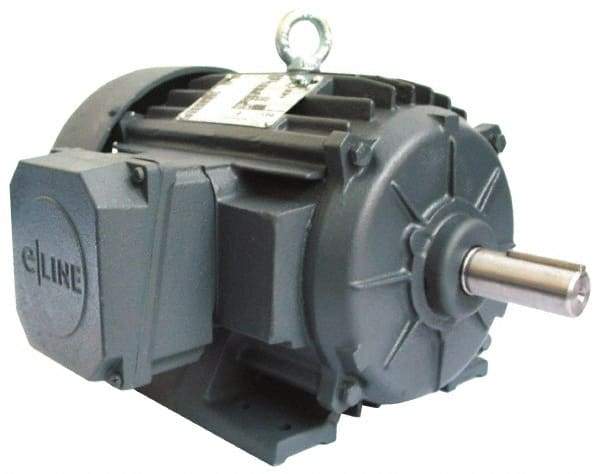

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 256 Frame, Rigid Mount, 1 Speed, Ball Bearings, 18.1 Full Load Amps, F Class Insulation, CCW Lead End - USA Tool & Supply

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 256 Frame, Rigid Mount, 1 Speed, Ball Bearings, 18.1 Full Load Amps, F Class Insulation, CCW Lead End


Item #: 81423667
Brand: US Motors
Model #: ELT20E2G
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure TEFC
Horsepower 20
Thermal Protection Rating None
Name Plate RPMs 1755
Voltage 575
Frequency Hz 60
Frame Size 256
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 18.1
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 25.8300
Full Load Efficiency Rating 89.8
Service Factor Rating 1.2
Motor Rotation CCW Lead End
PSC Code 6105
$1,799.89
