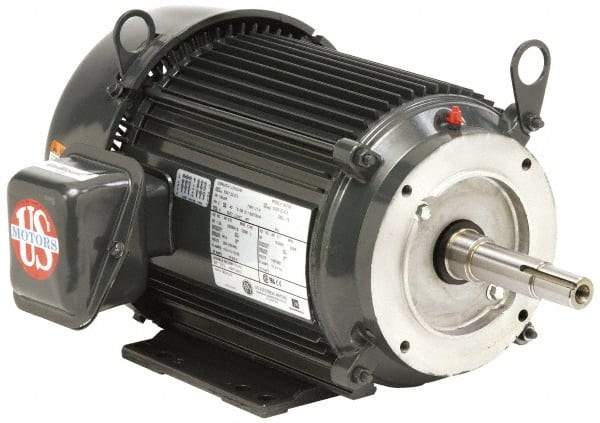

US Motors - 3/4 hp, TEFC Enclosure, No Thermal Protection, 3,500 RPM, 575 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56 Frame, C-Face Mount, 1 Speed, Ball Bearings, 1 Full Load Amps, F Class Insulation, Reversible
Item #: 81423121
Brand: US Motors
Model #: EE515-5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 3/4 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3500 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 1 |
| Insulation Class | F |
| Frame Material | Aluminum |
| Overall Length (Decimal Inch) | 11.6000 |
| Full Load Efficiency Rating | 75.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
