US Motors - 3/4 hp, TEFC Enclosure, No Thermal Protection, 3,500 RPM, 208-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56J Frame, Rigid Mount, 1 Speed, Ball Bearings, 2.7-2.5/1.3 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

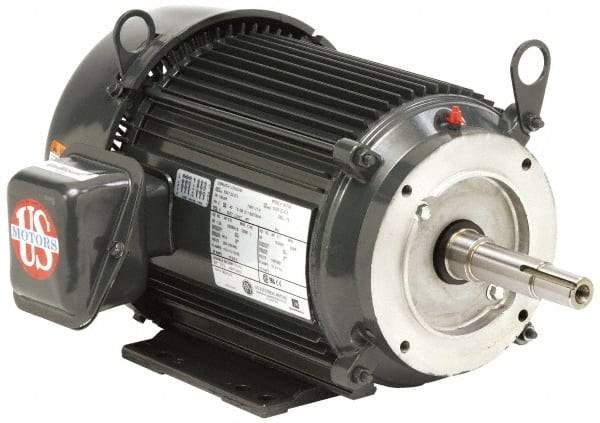

US Motors - 3/4 hp, TEFC Enclosure, No Thermal Protection, 3,500 RPM, 208-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56J Frame, Rigid Mount, 1 Speed, Ball Bearings, 2.7-2.5/1.3 Full Load Amps, F Class Insulation, Reversible


Item #: 81423113
Brand: US Motors
Model #: EE515
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Standard Efficient
Type of Enclosure TEFC
Horsepower 3/4
Thermal Protection Rating None
Name Plate RPMs 3500
Voltage 208-230/460
Frequency Hz 60
Frame Size 56J
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications Special Application
Full Load Amperage 2.7-2.5/1.3
Insulation Class F
Frame Material Aluminum
Overall Length (Decimal Inch) 11.6000
Full Load Efficiency Rating 75.5
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$417.62
