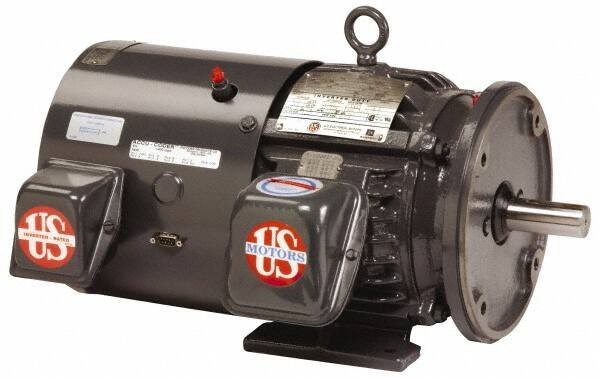

US Motors - 25 hp, TEFC Enclosure, No Thermal Protection, 3,560 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 284 Frame, Rigid Mount, 1 Speed, Ball Bearings, 59/29.3 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 25 hp, TEFC Enclosure, No Thermal Protection, 3,560 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 284 Frame, Rigid Mount, 1 Speed, Ball Bearings, 59/29.3 Full Load Amps, F Class Insulation, Reversible


Item #: 81422602
Brand: US Motors
Model #: B25T1BS
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 25
Thermal Protection Rating None
Name Plate RPMs 3560
Voltage 230/460
Frequency Hz 60
Frame Size 284
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications Definite Purpose
Full Load Amperage 59/29.3
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 24.5000
Full Load Efficiency Rating 91.7
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$6,941.24
