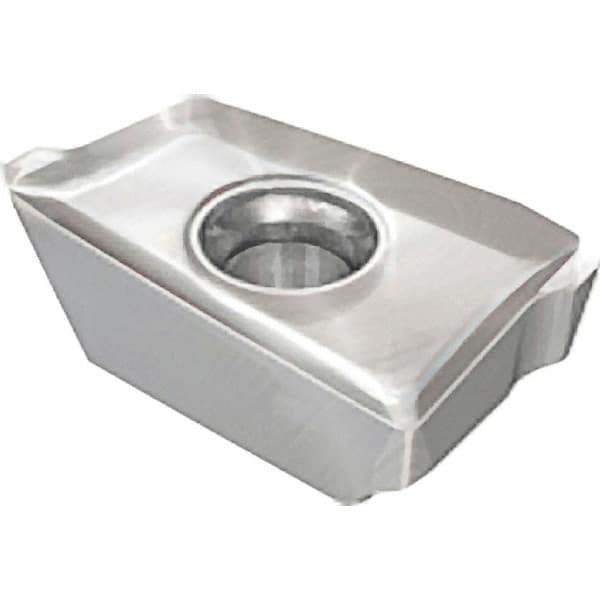

Iscar - 3M AXKT2006 Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.256" Thick
Item #: 81267890
Brand: Iscar
Model #: 5603081
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3M AXKT |
| Insert Size | 2006 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Width (Decimal Inch) | 0.5472 |
| Length (Decimal Inch) | 0.8898 |
| Thickness (Decimal Inch) | 0.2560 |
| Rake Angle | 26 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| ISO Number | 3M AXKT 2006-ADTR |
