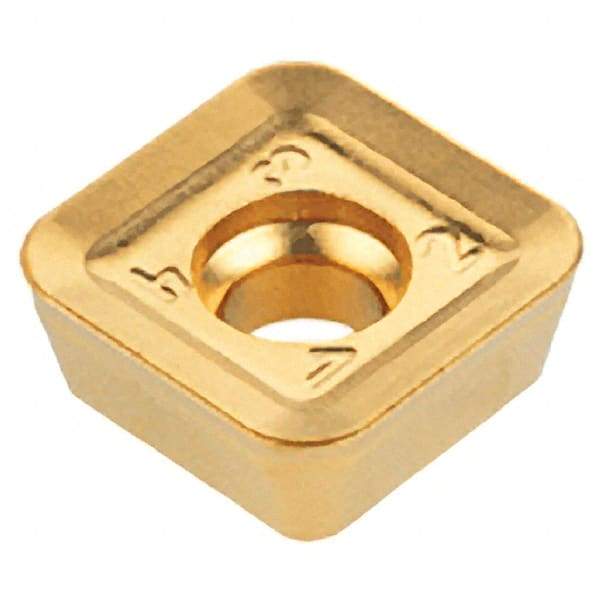

Iscar - QDMT120532 M Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.1969" Thick, 1/2" Inscribed Circle, 3.2mm Corner Radius
Item #: 81242711
Brand: Iscar
Model #: 5604487
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDMT |
| Insert Size | 120532 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 3.20 |
| Relief Angle | 15.000 |
| Rake Angle | 22 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | M |
| ISO Number | QDMT 120532PDTN-M |
