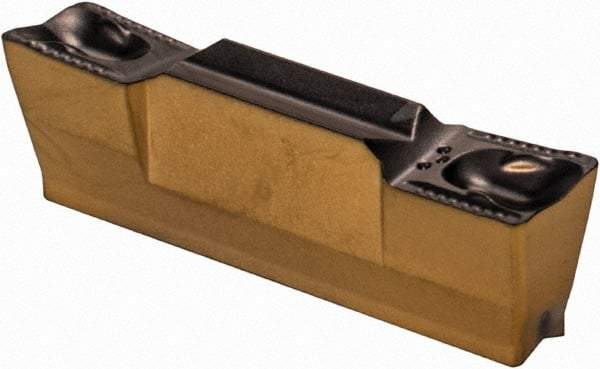

Iscar - 4004GRIP Y Grade IC808, 4mm Cutting Width Carbide Grooving Insert - 2.4mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiN/TiAlN Finish
Item #: 81157810
Brand: Iscar
Model #: 6200323
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GRIP |
| Insert Size | 4004 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Chipbreaker | Y |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Facing; Grooving; Parting; Turning |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heli-Grip |
| ISO Number | GRIP 4004Y |
| Manufacturers Catalog Number | GRIP 4004Y |
