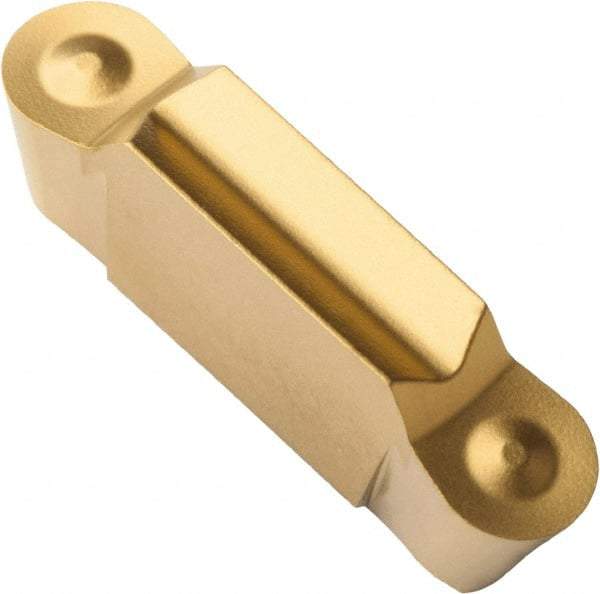

Seco - LCGF, 3/16" Cutting Width, RP, CP200 Grade, Double End Multi-Directional Turning Insert - TiAlN, TiN Coated, Full Radius
Item #: 81088437
Brand: Seco
Model #: 78332
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCGF |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP200 |
| Thickness (Decimal Inch) | 0.1772 |
| Cutting Width (Decimal Inch) | 0.1874 |
| Cutting Width (mm) | 4.76 |
| Cutting Height (Decimal Inch) | 0.1640 |
| Corner Radius (Decimal Inch) | .094 |
| Single or Double End | Double |
| Chipbreaker | RP |
| Insert Seat Size | 16 |
| Full Radius | Yes |
| Insert Length (Decimal Inch) | 0.6957 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Insert Holding Method | Clamp |
