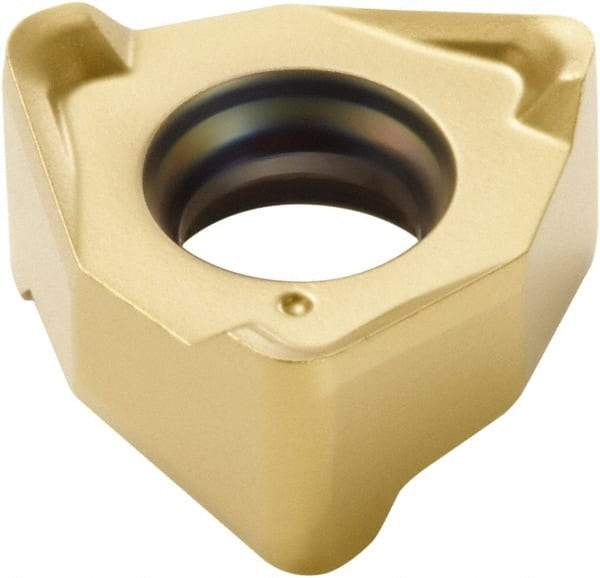

Seco - XNEX040308 M06 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.1303" Thick, 0.2638" Inscribed Circle, 0.8mm Corner Radius
Item #: 81040784
Brand: Seco
Model #: 79068
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 040308 |
| Material | Carbide |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.2638 |
| Thickness (Decimal Inch) | 0.1303 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | M06 |
| Manufacturers Catalog Number | XNEX 040308R-M06 |
