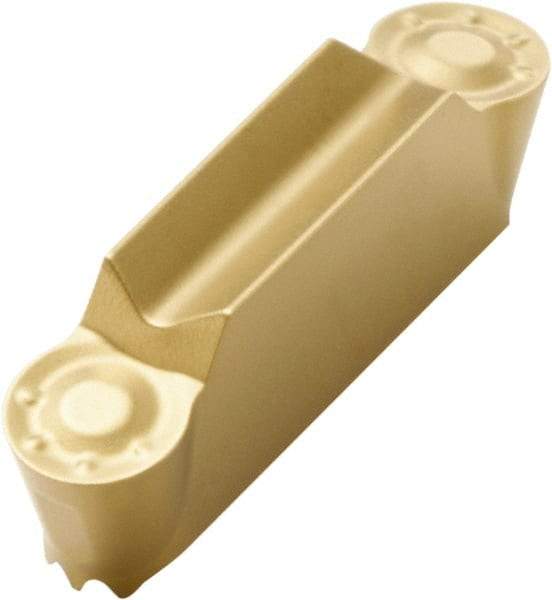

Seco - LCMF, 0.1575" Cutting Width, MP, CP200 Grade, Double End Multi-Directional Turning Insert - TiAlN, TiN Coated, Full Radius, 1.59mm Cnr Rad
Item #: 81018442
Brand: Seco
Model #: 30160
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP200 |
| Thickness (Decimal Inch) | 0.1875 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (mm) | 1.59 |
| Single or Double End | Double |
| Chipbreaker | MP |
| Insert Seat Size | 4 |
| Full Radius | Yes |
| Insert Length (Decimal Inch) | 0.6790 |
| Series | MDT |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | None |
| Insert Holding Method | Clamp |
