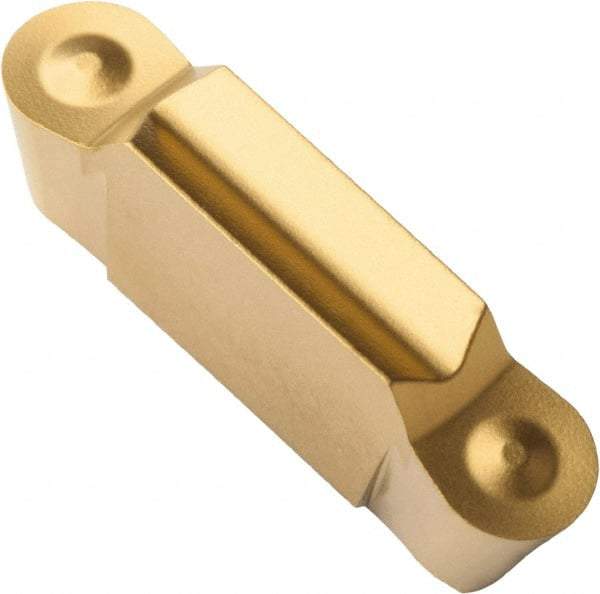

Seco - LCGF, 0.2362" Cutting Width, RP, CP200 Grade, Double End Multi-Directional Turning Insert - TiAlN, TiN Coated, Full Radius
Item #: 81018384
Brand: Seco
Model #: 78327
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCGF |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP200 |
| Thickness (Decimal Inch) | 0.1772 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Cutting Width (mm) | 6.00 |
| Cutting Height (Decimal Inch) | 0.1620 |
| Corner Radius (Decimal Inch) | .118 |
| Single or Double End | Double |
| Chipbreaker | RP |
| Insert Seat Size | 16 |
| Full Radius | Yes |
| Insert Length (Decimal Inch) | 0.7079 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Insert Holding Method | Clamp |
