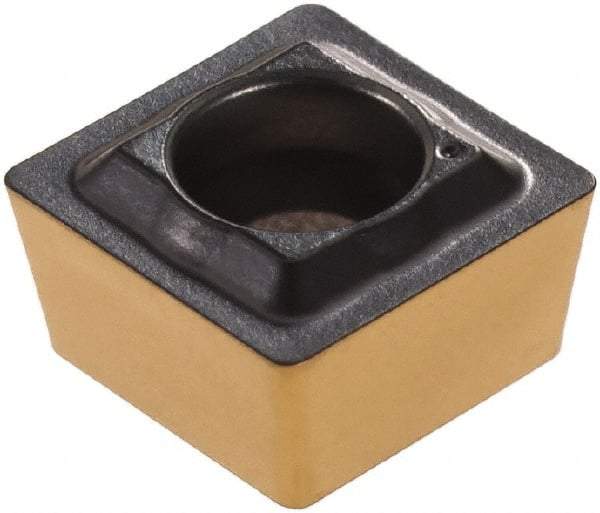

Iscar - SOMX060304 HD Grade IC808 Carbide Indexable Drill Insert - TiAlN/AlTiN/TiN Finish, Square, 6.2mm Inscribed Circle
Item #: 81014912
Brand: Iscar
Model #: 5567136
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN, AlTiN, TiN is a multilayer coating that is abrasive-resistant and has a high hardness. Ideal for high speed applications and used for machining nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Insert Style | SOMX |
| Insert Size | 060304 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Inscribed Circle (mm) | 6.20 |
| Inscribed Circle (Decimal Inch) | 0.2440 |
| Thickness (mm) | 3.20 |
| Thickness (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Shape | Square |
| Coating | TiAlN/AlTiN/TiN |
| Coating Process | PVD |
| Chipbreaker | HD |
