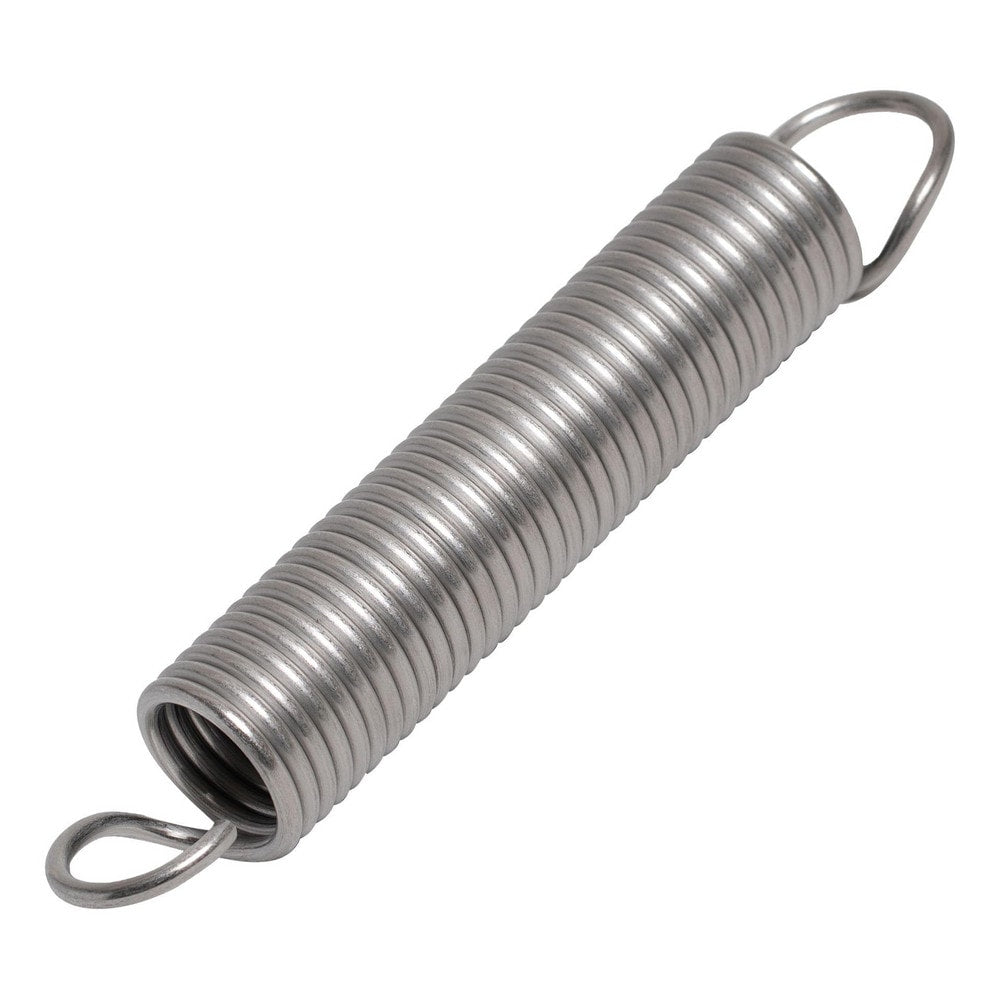

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 15.0000; Spring Rate: 0.4000; Material: Stainless Steel; Overall Length (Decimal Inch): 10.2600
Item #: 03026994
Brand: Associated Spring Raymond
Model #: MCEM1501400258S
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 15.0000 |
| Spring Rate | 0.4000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 10.2600 |
| Initial Tension (N) | 6.7 |
| Maximum Extended Length (mm) | 777.53 |
| Free Length (mm) | 257.800 |
| Inside Hook Length (Fractional Inch) | 10-5/32 |
| Standards | EN 10270-3; JIS G4314 SUS 302; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (mm) | 1.40 |
| UNSPSC Code | 31161907 |
