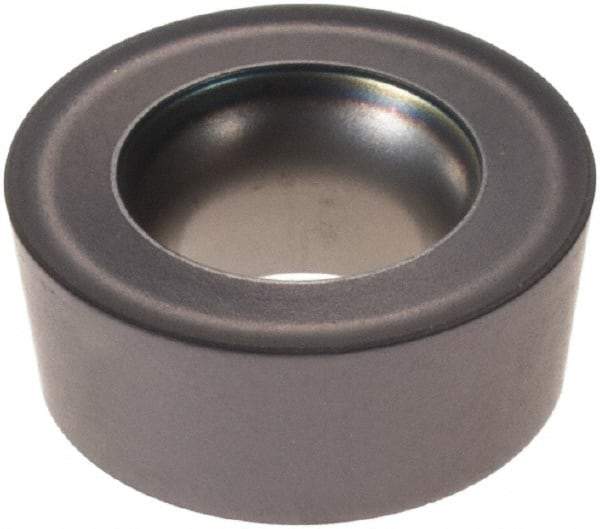

Iscar - RCMT1204M, IC907 Grade Carbide Profiling Insert - TiAlN/TiN Finish, 7° Relief Angle, Round, 4.75mm Thick, 11.99mm Inscribed Circle
Item #: 80692171
Brand: Iscar
Model #: 5595021
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RCMT |
| Insert Size | 1204M |
| Material Grade | Submicron |
| Manufacturer's Grade | IC907 |
| Inscribed Circle (mm) | 11.99 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Hole Diameter (mm) | 5.51 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Coating Process | PVD |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shape | Round |
