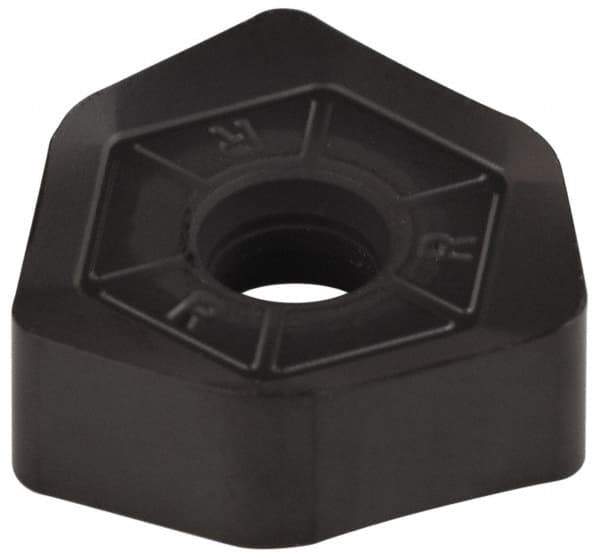

Kennametal - XNGJ535 GD Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.217" Thick, 5/8" Inscribed Circle, 1.6mm Corner Radius
Item #: 80602725
Brand: Kennametal
Model #: 3547035
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNGJ |
| Insert Size | 535 |
| Material | Carbide |
| Material Grade | C1/C5/C6 |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Thickness (Decimal Inch) | 0.2170 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Shape | Hexagon |
| Chipbreaker | GD |
| ISO Number | XNGJ0905ANSNGD3W |
