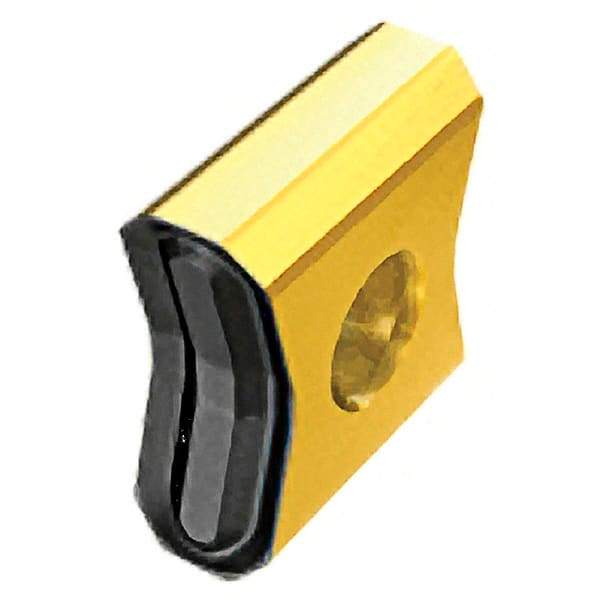

Iscar - LNKX1506 N Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.5465" Thick, 0.8mm Corner Radius
Item #: 80596935
Brand: Iscar
Model #: 5605011
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNKX |
| Insert Size | 1506 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.5465 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 27 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | N |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| ISO Number | LNKX 1506 1.5X45PN-N |
