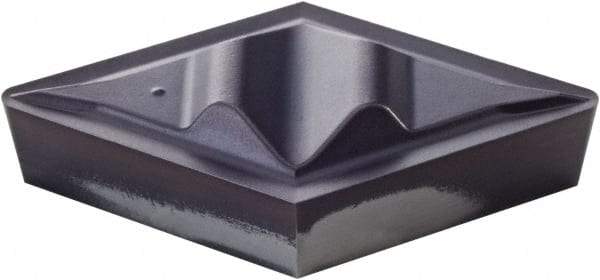

Kennametal - DPGR432, KCU25 Grade Carbide Profiling Insert - AlTiN Finish, 55° Incl Angle, Diamond, 0.6104" Side Length, 3/16" Thick, 1/32" Corner Radius, 1/2" Inscribed Circle
Item #: 80420383
Brand: Kennametal
Model #: 4050522
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DPGR |
| Insert Size | 432 |
| Manufacturer's Grade | KCU25 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 11 |
| Coating | AlTiN |
| Coating Process | PVD |
| Side Length (Decimal Inch) | 0.6104 |
| Side Length (mm) | 15.50 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Diamond |
