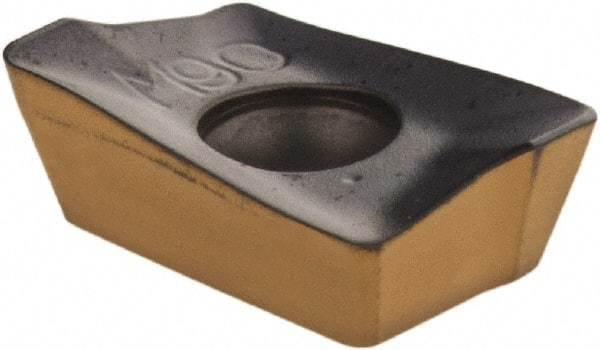

Iscar - HM90 APKT1003 Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.139" Thick, 0.8mm Corner Radius
Item #: 79540829
Brand: Iscar
Model #: 5606351
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APKT |
| Insert Size | 1003 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2661 |
| Length (Decimal Inch) | 0.4039 |
| Thickness (Decimal Inch) | 0.1390 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | HM90 APKT 1003PDR |
