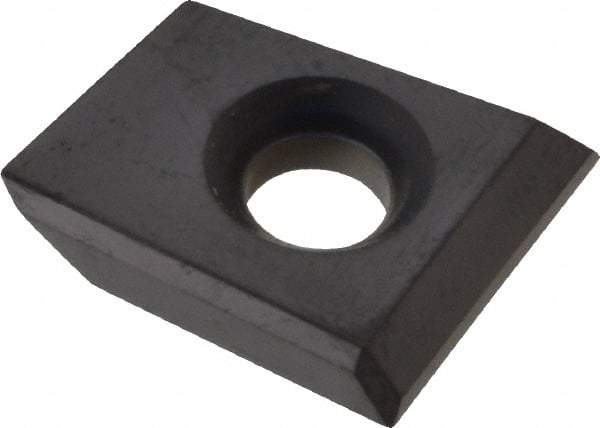

Kennametal - BGHX15L5 Grade KC510M Carbide Milling Insert - TiAlN Finish, 0.197" Thick
Item #: 78999471
Brand: Kennametal
Model #: 1794655
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BGHX |
| Insert Size | 15L5 |
| Material | Carbide |
| Manufacturer's Grade | KC510M |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.4134 |
| Thickness (Decimal Inch) | 0.1970 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Relief Angle | 30.000 |
| Rake Angle | 30 |
| Coating Process | PVD |
| Shape | Irregular |
| Insert Hand | Right Hand |
| ISO Number | BGHX15L5PCTRGG |
