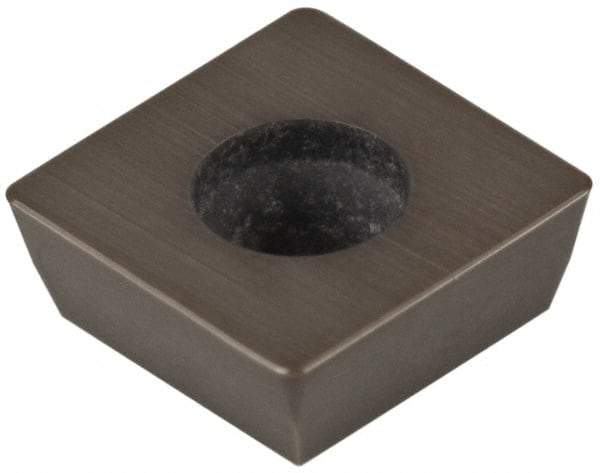

Kennametal - SDCW43 GN Grade KY3500 Ceramic Milling Insert - Uncoated, 0.1874" Thick, 1/2" Inscribed Circle, 0.79mm Corner Radius
Item #: 78999331
Brand: Kennametal
Model #: 1597226
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SDCW |
| Insert Size | 43 |
| Material | Ceramic |
| Material Grade | C2 |
| Manufacturer's Grade | KY3500 |
| Coating | Uncoated |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (mm) | 0.79 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 15.000 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | GN |
| ISO Number | SDCW1204PDSRGN |
