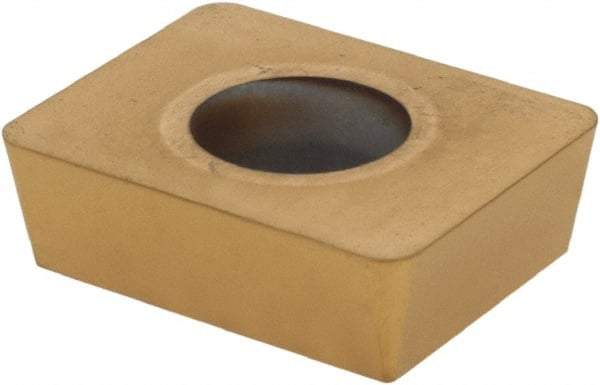

Kennametal - XPCW150412 Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 3/16" Thick, 1.2mm Corner Radius
Item #: 78998572
Brand: Kennametal
Model #: 1181470
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPCW |
| Insert Size | 150412 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 88 |
| Shape | Parallelogram |
| Insert Hand | Left Hand |
| ISO Number | XPCW150412L |
