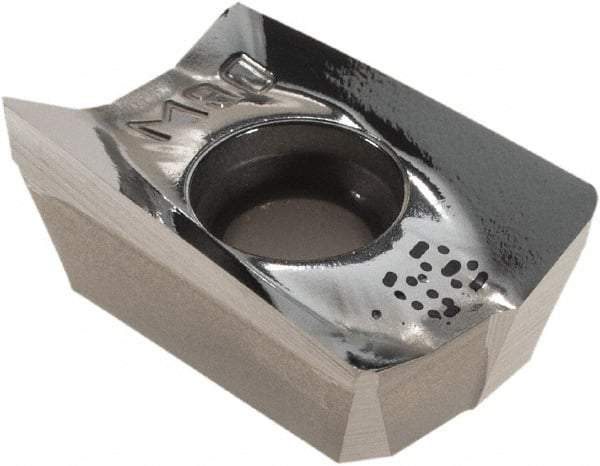

Iscar - HM90 ADCR1505 P Grade IC08 Carbide Milling Insert - Uncoated, 0.2717" Thick, 0.8mm Corner Radius
Item #: 78686698
Brand: Iscar
Model #: 5602967
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADCR |
| Insert Size | 1505 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3760 |
| Length (Decimal Inch) | 0.6417 |
| Thickness (Decimal Inch) | 0.2717 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Rake Angle | 35 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 15.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.6024 |
| ISO Number | HM90 ADCR 1505PDFR-P |
