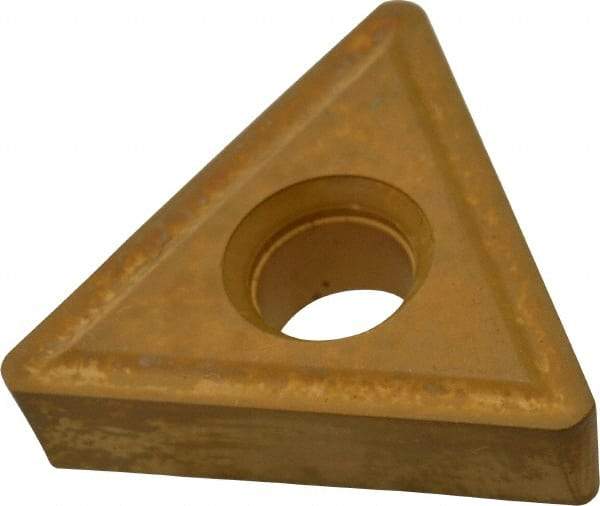

Interstate - TT433 Grade TCN55 Carbide Turning Insert - TiN/TiC/TiCN/TiN Finish, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 78639390
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TT |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | TCN55 |
| Coating | TiN/TiC/TiCN/TiN |
| Material Grade | C5 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | P; M |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
