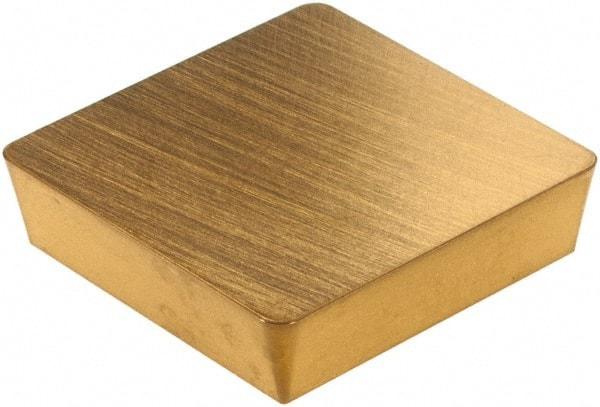

Tungaloy - SPU633 Grade T3130 Carbide Turning Insert - 90° Square, 3/4" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 78618873
Brand: Tungaloy
Model #: 6856945
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPU |
| Insert Size | 633 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | T3130 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Insert Holding Method | Clamp |
| Shape | Square |
