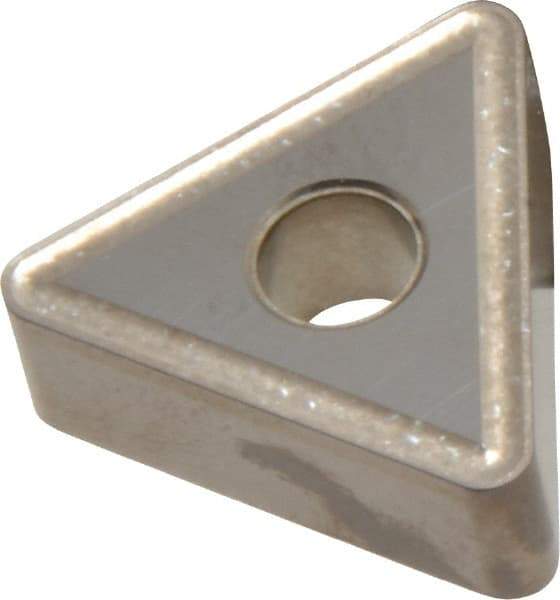

Value Collection - TNMG666 Grade I55 Carbide Turning Insert - Uncoated, 60° Triangle, 3/4" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 78231156
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 666 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | I55 |
| Coating | Uncoated |
| Material Grade | C5/C6 |
| Hole Diameter (Decimal Inch) | 0.3150 |
| Relief Angle | 0 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
