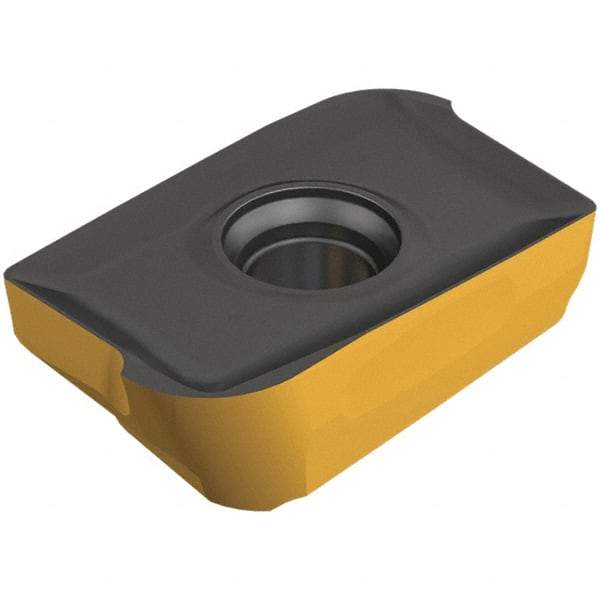

Iscar - 3M AXKT200640 Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2465" Thick, 4mm Corner Radius
Item #: 78157872
Brand: Iscar
Model #: 5602956
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3M AXKT |
| Insert Size | 200640 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.5315 |
| Length (Decimal Inch) | 0.8622 |
| Thickness (Decimal Inch) | 0.2465 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Rake Angle | 26 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| ISO Number | 3M AXKT 200640R-PDR |
