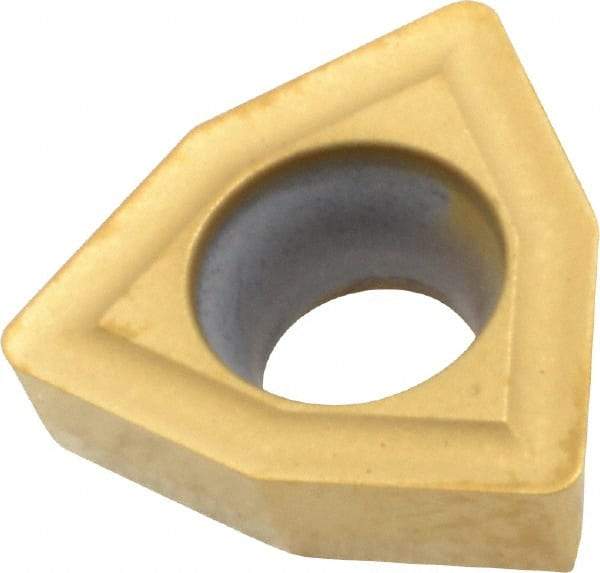

Kennametal - DFT06T308 GD Grade KC720 Carbide Indexable Drill Insert - TiN Finish, Trigon, 10mm Inscribed Circle
Item #: 78122314
Brand: Kennametal
Model #: 1157961
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | DFT |
| Insert Size | 06T308 |
| Material | Carbide |
| Material Grade | C1/C5 |
| Manufacturer's Grade | KC720 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (mm) | 3.75 |
| Thickness (Decimal Inch) | 0.1476 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Length (mm) | 6.62 |
| Length (Decimal Inch) | 0.2606 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiN |
| Coating Process | PVD |
| Chipbreaker | GD |
