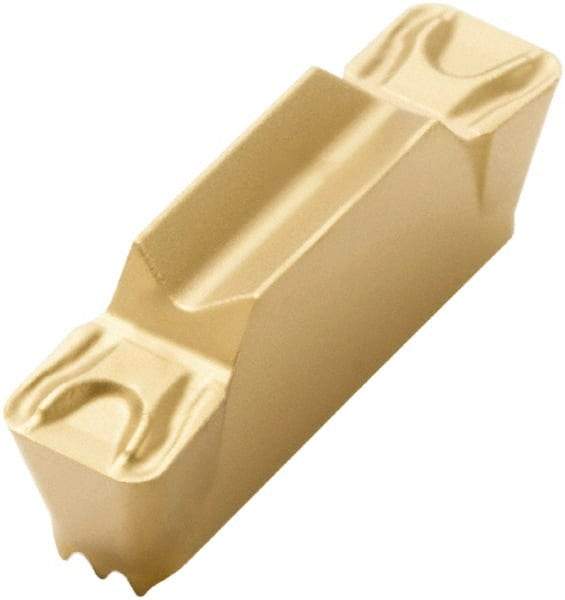

Seco - LCMF, 130302 0.118" Cutting Width, FT, CP500 Grade, Multi-Directional Turning Insert - 0.008" Corner Radius
Item #: 78080322
Brand: Seco
Model #: 91031
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Insert Hand | Neutral |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Cutting Height (Decimal Inch) | 0.1570 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | FT |
| Insert Length (Decimal Inch) | 0.4860 |
| Length (Decimal Inch) | 0.4860 |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Included Angle | 90 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp |
