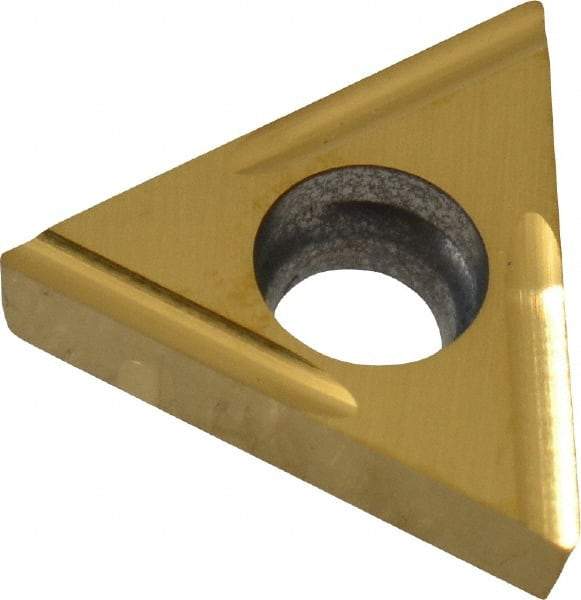

Tungaloy - TCGT110202 FRJ10 Grade J740 Carbide Turning Insert - Uncoated, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 78070968
Brand: Tungaloy
Model #: 6807665
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 110202 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | J740 |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Chip Breaker | FRJ10 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
